Trinnov Audio Amplitude 16 16 Channel Power Amplifier

On Demonstration. We are Trinnov Audio Certified.

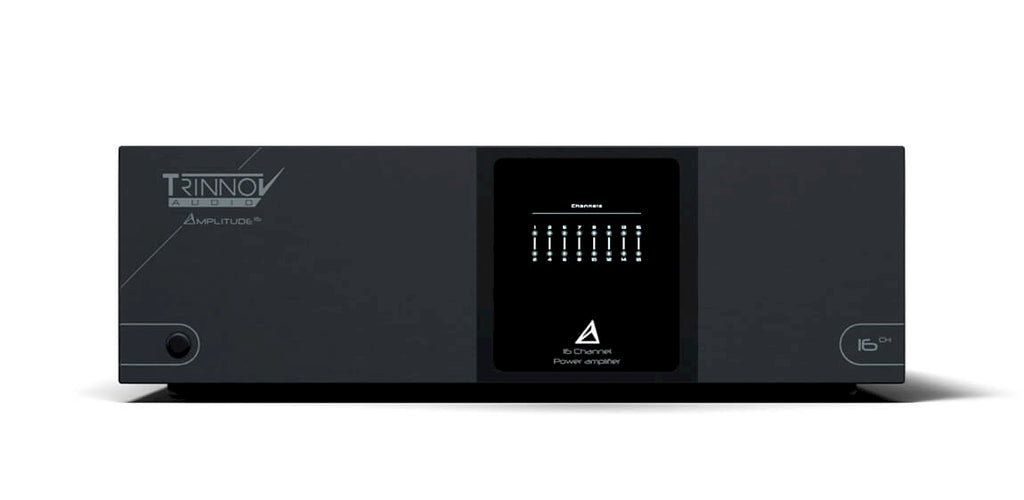

On permanent demonstration at Cinehome, the Trinnov Audio Amplitude¹⁶ is a superb power amplifier, delivering sixteen channels in a single chassis.

Designed for immersive home theaters, with custom integration in mind, the Amplitude¹⁶ becomes perhaps the most versatile power amplifier available today, providing integrators with the unique ability to meet diverse channel counts and power requirements.

Effectively two 8-channel amplifiers on a single 3RU chassis, the Amplitude¹⁶ has dual power supplies, each requiring its own 15A AC mains power inlet.

• Maximum continuous power with all 16 channels driven is 2800W at 115V and 3200W at 230V with less than 0.1% THD+N.

• Maximum peak power with all 16 channels driven is 6080W with 1% THD+N.

Specification

AUDIO POWER & GAIN

• One Channel 8Ω: 200W (1kHz, 0,1% < THD+N)
• One Channel 4Ω: 400W (1kHz, 0,1% < THD+N)
• One Channel Bridged 8Ω: 800W (1kHz, 0,1% < THD+N)
• One Channel Bridged 4Ω: 1000W (1kHz, 0,1% < THD+N)
• Total Output Power (120 VAC): 2800W all channels driven SE or BTL
• Total Output Power (230 VAC): 3200W all channels driven SE or BTL
• Peak Power: 6080W all channels driven SE or BTL
• Gain: 16 dB single ended / 22 dB bridged

AUDIO PERFORMANCE

• THD+N Single Ended: 0.0015% - 8Ω, 5W (2dBu)
• THD+N Bridged: 0.0015% - 8Ω, 20W (8dBu)
• Frequency Response: +0/- 0,6 dB, 20 Hz to 20 kHz, load-independent
• Damping Factor: 2340 at 100Hz / 1820 at 1kHz / 354 at 10kHz
• Signal to noise ratio: 126 dB ref to rated 1% THD output (A-Weighted)
• Crosstalk: 96dB single ended 200W 8Ω
• Intermodulation Distortion: Less than 0.05%

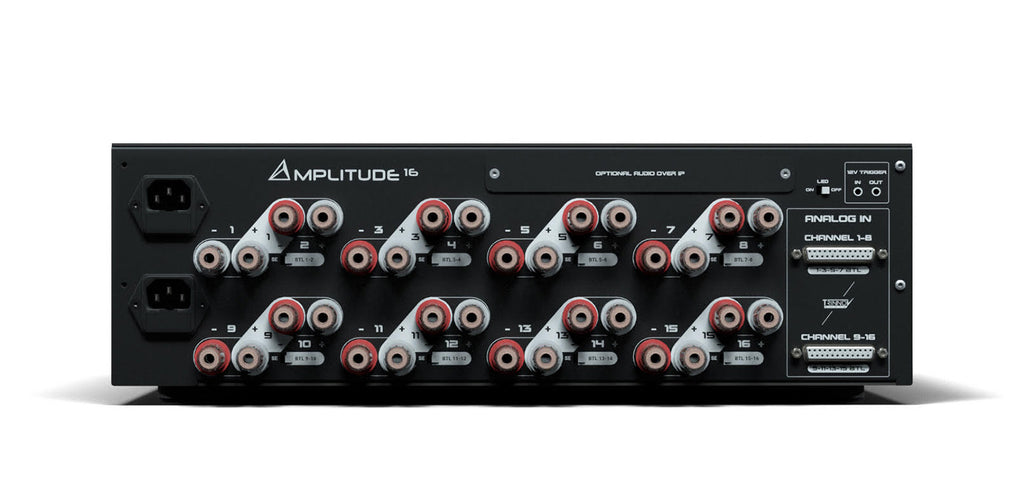

AUDIO INPUTS & OUTPUTS

• Input Connectors: 2x DB25 Female, Tascam Analog Pinout
• Input Impedance: 47 kΩ, each phase
• Input Sensitivity: 6.16V (+18dBu)
• Output Connectors: 1x 5 way binding post per channel

POWER SUPPLY

• Power Requirement: 2x 100/240V (auto-selecting)
• Power Consumption: 0,52W Standby; 125W idle; Max 2x 2000W
• Power Input: 2x IEC C14
• Inrush current at startup: 16A (<100ms, each inlet)
• Thermal Conversion: 683 BTU/h MAX
• Mains Fuse: 2x 10 Amp slow blow
• 12V Trigger Input: 5-15 VDC; Steady State (mini-jack TS)
• 12V Trigger Output: 8-10 VDC; Steady State (mini-jack TS)

WEIGHT & DIMENSIONS

• Dimensions (W x H x D) mm, including rack ears: 482 x 132 x 452
• Dimensions (L x H x P) inches, including rack ears: 19” x 5 1/5” x 17 4/5”
• Shipping box dimensions (W x H x D) cm: 54 x 53 x 22
• Weight: 20.5kg / 45.3 lbs
• Shipping weight / volume: 22.4kg / 0.064 M3

WARRANTY

• Standard Warranty: 5 year
• Transferable: Yes
