Perlisten Audio Perlisten Audio R15S Subwoofer

£4,000.00

ON DEMONSTRATION

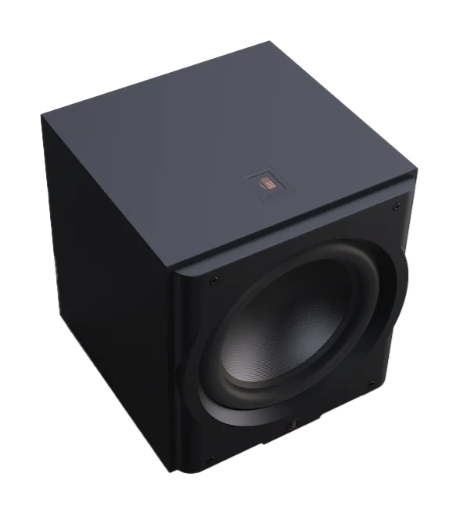

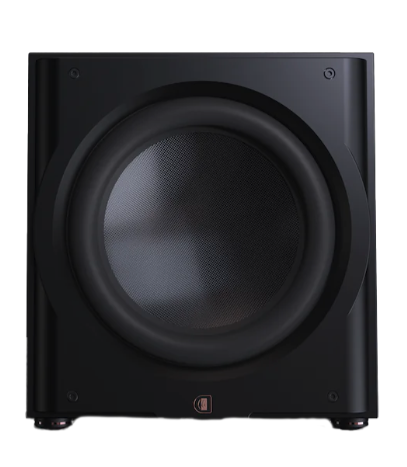

Perlisten Audio R15S

R-Series subs – Trickle down technology from the flagship D-Series, Perlsten developed a line-up of single driver-based subwoofers. Ground up drivers developed by Perlisten engineers. Glass fiber composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire are the key ingredients.

Proprietary nonlinear modelling techniques allows to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of a Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier here to match the 18” driver, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy.

All R-Series subs share the 2.4” LCD touchscreen display and ability to control advance settings using the Perlisten App.

Specification

Alignment	Acoustic suspension
Amplifer	1.0kW rms
Display Interface	2.4" LCD color touchscreen
App	iOS and Android
Processor	32-bit ARM Cortex M4, double precision floating point math
DSP Engine	Ti DSP 48-bit data paths
Driver compliment	380mm, Glass fiber diaphragm +/-23.7mm linear excursion
Reference sensitivity	92dB /150mV/ 1.0m
Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ	20-388Hz (-6dB) / 16-468Hz (-10dB) 16-388Hz (-6dB) / 14-468Hz (-10dB) 25-388Hz (-6dB) / 19-468Hz (-10dB)
Inputs	(1) Balanced XLR (1) Unbalanced RCA
Outputs	(1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered
Parametric EQ	10-Band PEQ with 3 user presets
Low Pass filter	Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase	Variable 0-270°
Polarity	Normal / inverted
Configurable Auto turn-on and 12v Trigger	XLR, RCA
Dimensions (HxWxD)	498 x 460 x 465mm 19.6 x 18.1 x 18.3"
Weight overall	35.5 kg (78.1 lbs.)
Available finishes	Satin black
