Perlisten Audio R3ic in-ceiling speaker (single)
Perlisten Audio Perlisten Audio R3ic in-ceiling speaker (single)
Brand: Perlisten Audio
Type: In Ceiling Loudspeakers
ON DEMONSTRATION
Perlisten Audio R3ic

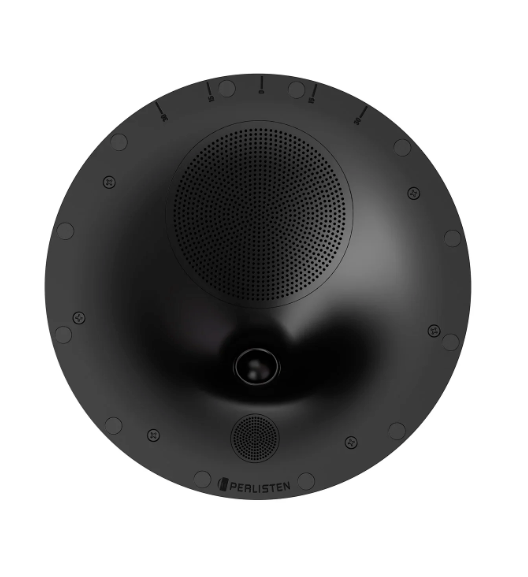

The perfect solution for high end Dolby Atmos, DTS:X, and Auro-3D applications. Featuring an innovative new waveguide array controlling Mid/High frequencies, centered by a 28mm soft dome tweeter and 28mm soft dome mid. Optimized for in-ceiling applications where a 30 degree reference axis is desired as well as larger listening window in the direction towards the listening space. Extremely versatile – Can be used as L,C,R, surround, height, or wide channel speaker. Once again, all transducers were developed ground up by our engineers shareing largely from with R-Series, based on decades of research, culminating in this world class design. Utilizing advanced Comsol acoustical modeling, the result is one of the most technologically advanced in-ceiling loudspeakers available. This new tweeter/waveguide DPC-Array delivers amazing accuracy, smoothness, and directivity control to handle the critical vocal range and delicate treble. The R3ic also benefits from unique and proprietary timbre matching technique across the entire R-Series.
Specification
| Enclosure Alignment | 3-way acoustic suspension |
| Driver compliment | DPC Array: 28mm silk dome tweeter 28mm silk dome mid Woofers: 165mm Alum frame, HPF pulp |
| Sensitivity | 88.8dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.0Ω min |
| Listenting Window (from 30deg Ref) | Horizontal: +/-55 deg Vertical: +/-30 deg |
| Response Linearity | 100 - 20kHz +/-1.5dB window |
| Frequency Response | 59 - 30kHz (-6dB) 46 - 33kHz (-10dB) |
| Typical In Room bass extension | 51 Hz (-6dB) 36 Hz (-10dB) |
| Overall Dimensions (with grille) | 343.3 diam x 194.8mm depth 13.5" diam x 7.7" depth |
| Recommended cutout | 305mm diameter 12" diameter |
| Weight | 20.4lbs. (9.4kg) 11.8lbs. (5.4kg) without enclosure |
| Recommended Amplifier Power | 50 - 200W (with 80Hz HPF) 50 - 125W (full range) |
| SPL capability @1m (100-20kHz) | 111.8dB peak 111.0dB peak <3% 2nd, 3rd Harmonics |
| Certification | THX Dominus, THX Ultra |
