R8S Subwoofer

Perlisten Audio R8S Subwoofer

£1,600.00

Type: Subwoofers

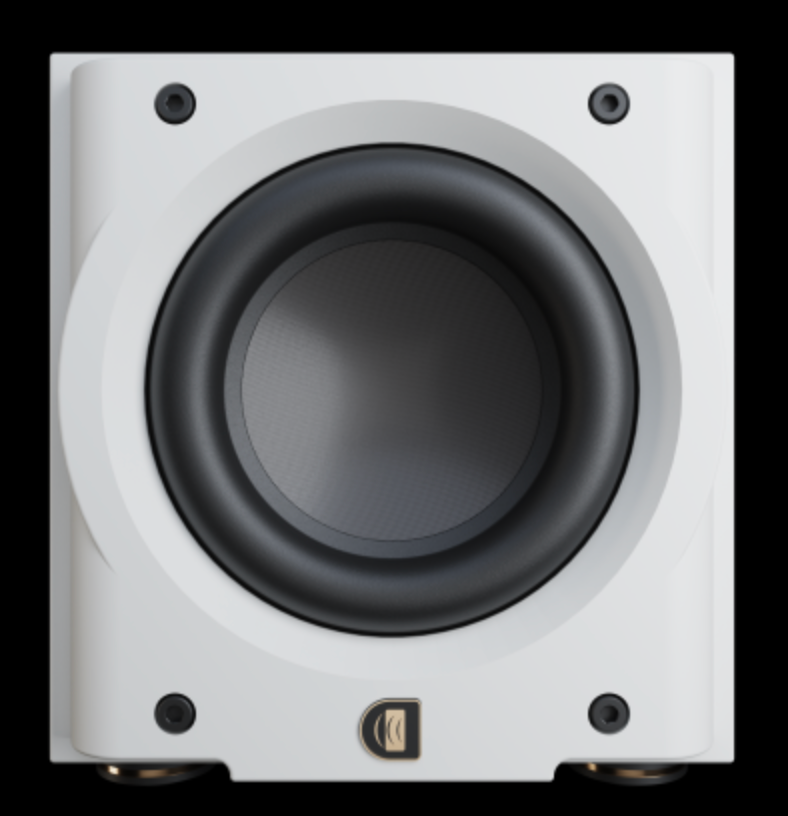

Perlisten Audio R8S DSP Subwoofer

IN STOCK & ON DEMONSTRATION

The Perlisten Audio R8 subwoofer is THE perfect subwoofer for smaller rooms and especially to integrate into a two channel hi-fi system. It's performance belies it's soze. It is punchy, has impeccaable timing and delivers bass that defies it's tiny cute size.

R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver-based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 500W amplifier to match the new designed 8” driver, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advanced settings using our App.

Specification

Alignment Acoustic suspension
Amplifier 500W rms
Display Interface 2.4" LCD color touchscreen
App iOS and Android
Processor 32-bit ARM Cortex M4, double precision floating point math
DSP Engine Ti DSP 48-bit data paths
Driver compliment 215mm, Glass fiber diaprhragm
+/-28.0mm linear excursion
Reference sensitivity 86dB /150mV/ 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ
20-265Hz (-6dB) / 16-330Hz (-10dB)
16-265Hz (-6dB) / 14-330Hz (-10dB)
25-265Hz (-6dB) / 19-330Hz (-10dB)
Inputs (1) Balanced XLR
(1) Unbalanced RCA
Outputs (1) Balanced XLR unbuffered
(1) Unbalanced RCA unbuffered
Parametric EQ 10-Band PEQ with 3 user presets
Low Pass filter bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase Variable 0-270
Polarity Normal / inverted
Configurable Auto turn-on and 12v Trigger XLR, RCA
Dimensions (HxWxD) 298 x 270 x 290mm
11.7 x 10.6x11.4"
Weight 14.4 kg (31.7 lbs.)
Available finishes Satin black and Satin white
