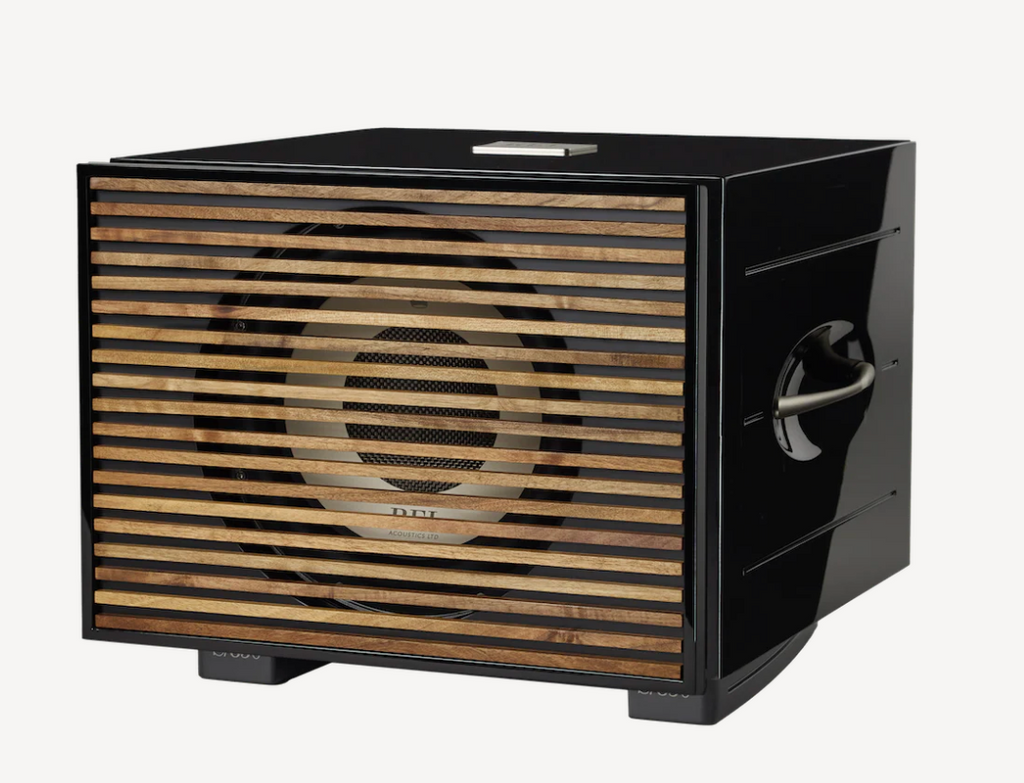

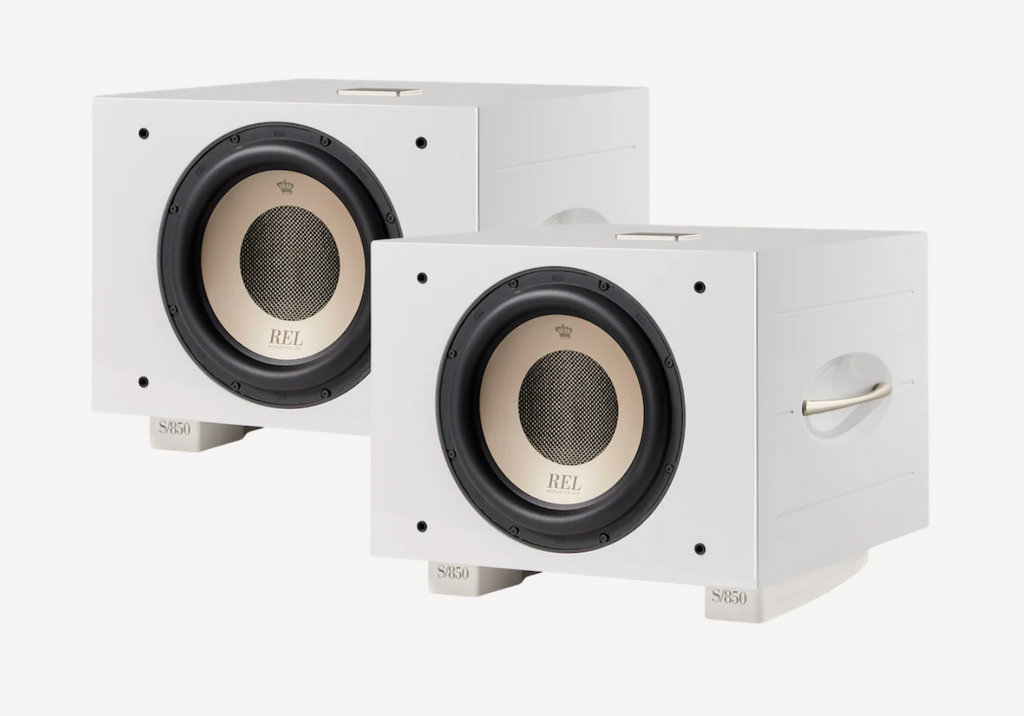

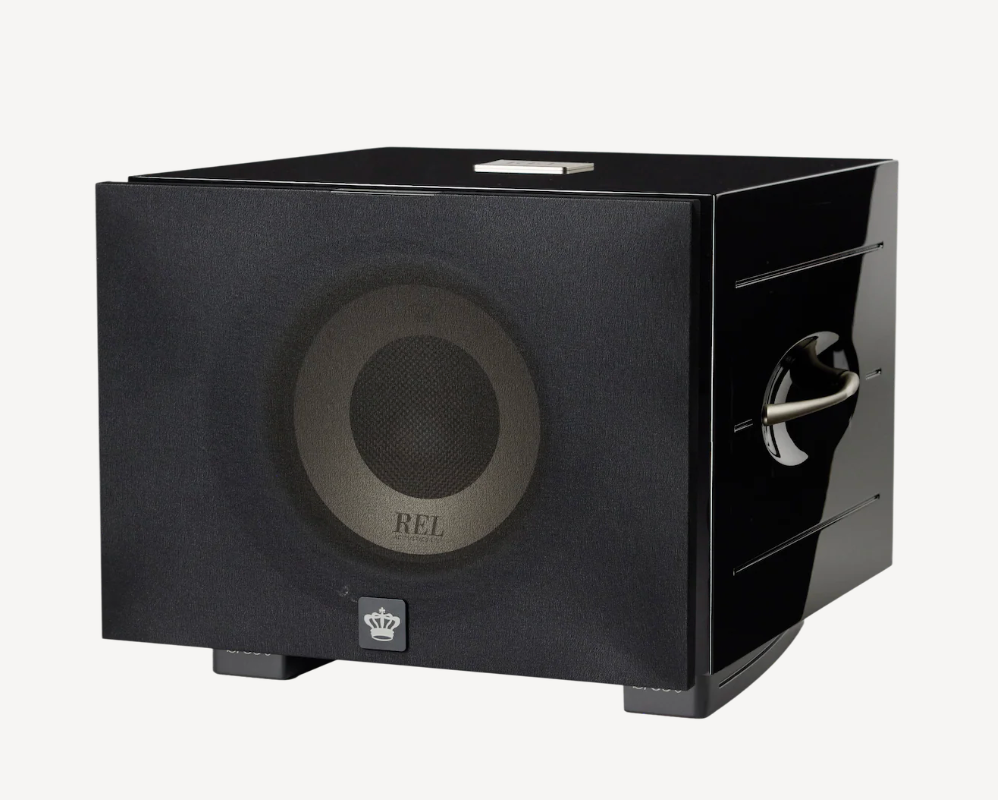

Serie S S/850 Subwoofer
IN STOCK & ON DEMONSTRATION
We have been huge fans of the REL range of subwoofers since the 1990's when REL intorduced their first range of subwoofers. REL Subwoofers are unique in offering both a Line Level (RCA and XLR depending on model) and High Level inputs which can have big benefits when integrating the subwoofer with the main loudspeakers or for use with a Hi-Fi Amplifier which lacks a dedicated subwoofer output.
S/850 is engineered for listeners who want uncompromising performance with a refined, musical touch. Drawing on innovations from our Reference line, it pairs an 850-watt Linear Class D amplifier with advanced CarbonAlloy™ drivers to deliver explosive dynamics, clarity, and effortless scale. Equally at home in high-end music systems or immersive theaters, S/850 brings control and confidence to medium-to-large rooms.
- 850-watt Linear Class D Amplifier for fast, controlled power delivery
- 12" CarbonAlloy™ Active Driver with 12" long-stroke Passive Radiator for depth and speed
- Optimized for music and theater systems in medium-to-large rooms
- Designed for stereo pairs and line-array configurations
Specification
Type
Front-firing active driver, down-firing passive
Active Driver Size & Material
12 in. (305mm) long-throw, CarbonAlloy™ cone structure, die cast alloy chassis
Passive Radiator Size & Material
12 in. (305mm), Carbon/Carbon flat cone structure, steel chassis
Low Frequency Extension
-6 dB at 19Hz
Input Connectors
High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR
Output Connectors
High Level Neutrik Speakon, (1) Low Level RCA, (1) LFE RCA or (1) LFE XLR
Power Output
850 watts (RMS)
Amplifier Type
Linear Class D
Wireless Capability
REL AirShip Direct (sold separately)
Dual Parametric Filter
N/A
Finish
Piano Black Lacquer, Gloss White Lacquer 8 coats
Protection System
Fully Electronic Set Safe
Yes
D.C. Fault
Yes
Output Short
Yes
Mains Input Voltage
220-240 volts, 110-120 volts for certain markets
Fuses
8 Amp semi delay 220 volts operation, 15 Amp semi delay 120 volts operation
Supplied Accessories
Mains Lead
Yes
Neutrik Speakon
Yes (10 Meters Nominal)
Interconnect
-
User Manual
Yes
