On Demonstration.

We are official delaers for Kaleidescape, the Ultimate Movie Platform

Kaleidescape is the only digital provider of movies with lossless audio and full reference video quality.

Kaleidescape’s entry-level movie player, redefined. Providing lossless audio and reference-quality 2K video output, Strato M works on its own or as part of a Kaleidescape system. Available for residential, marine, and commercial theatres.

• Lowest cost of entry with Kaleidescape quality.
• Standalone. Includes 480GB solid-state storage.
• Scalable. Add a movie server for more movies on demand and more players for whole-house entertainment.
• Lossless spatial audio. Clear dialog and immersive sound effects.
• Reference 2K video. Blu-ray quality or better, with more color detail (Dolby Vision, HDR10, BT.2020, 4:2:2 chroma).

Specification

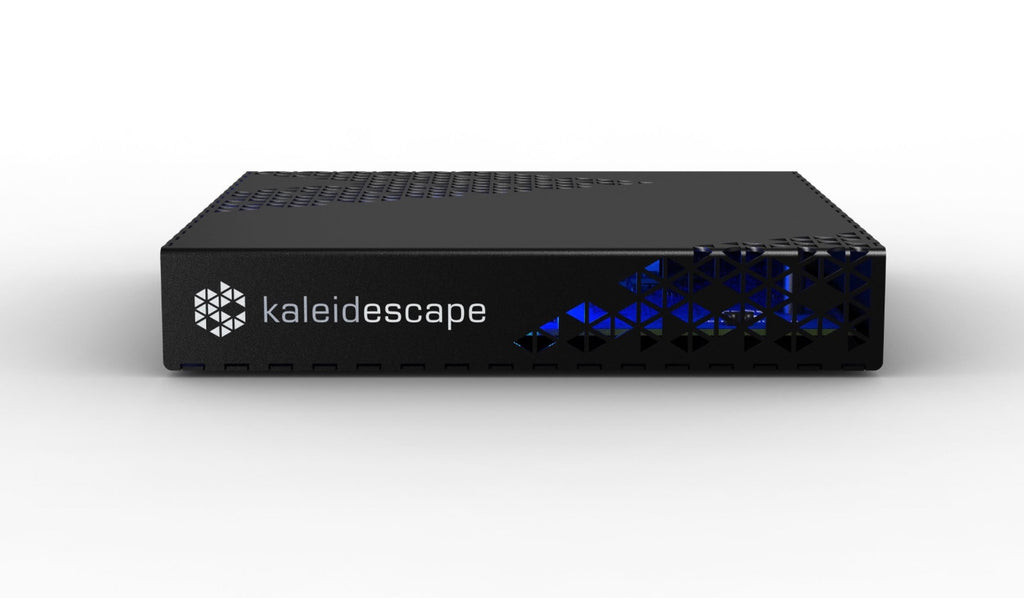

Strato M Movie Player

DIMENSIONS

• 6.4in x 1.1in x 6.4in (W x H x D)
  (16.3cm x 3cm x 16.3cm)

WEIGHT

• 1.6lb (0.73kg)

POWER

• Max consumption: 13W
• Typical: 4.3W
• High power standby: 3.8W
• Lower power standby: 0.5W
• External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground

NETWORK

• Gigabit Ethernet (1000 Base-T)

OTHER CONNECTION

• USB (for disc cataloging)

CONTROL

• Front-panel IR receiver
• Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)
• Lutron RA3 and HomeWorks control over Ethernet

ENVIRONMENT

• Operating: 41 to 95°F (5 to 35°C)
• Storage: -4 to 140°F (-20 to 60°C)
• Relative humidity: 20 to 80% (operation) 5 to 90% (storage)
• Maximum operating altitude: 10,000ft (3,048m)
• Heat output: 44 BTU/hr (13W) max
• Airflow: none

FAN NOISE

• Silent (no internal fan)

VENTILATION

• Minimum 1in (2.5cm) space at the front
• Minimum 2in (5cm) space at the rear

MOUNTS (sold separately)

• Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato M players in a 19in rack, 1U space
• Wall mount available for mounting behind TV displays

CERTIFICATIONS

• CSA 62368-1
• IEC 62368-1
• FCC CLASS B
• CE
• RoHS Compliant

VIDEO OUTPUT

• HDMI 2.1
• HDCP 2.3 copy protection

VIDEO OUTPUT FORMATS

• Output scaled to: 1080p60/50/30/25/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
• Chroma: 4:4:4 8/10/12-bit, 4:2:2 12-bit
• Color spaces: BT.2020, BT.709, BT.601
• Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
• HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)
• Movie playback up to 2K; UI in 2K

AUDIO OUTPUTS

• HDMI 2.1 (combined with video)

AUDIO FORMATS (HDMI Connector)

• Dolby Atmos
• DTS:X
• Dolby TrueHD
• DTS-HD Master Audio
• Dolby Digital Plus
• DTS-HD High Resolution Audio
• Dolby Digital
• DTS Digital Surround
• Dolby MAT PCM
• PCM (up to 7.1ch, 96kHz/24-bit)

STORAGE

• Standalone: Internal 480GB SSD (available storage for approximately 6 Kaleidescape high-bitrate movies)
• Grouped: Strato M can also access content stored on a Terra when connected and grouped via local network

MEDIA PLAYED

• Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality
• View recent HD additions  for Strato M in the movie store
• Current customers can also view their Strato M compatibility page in the movie store
