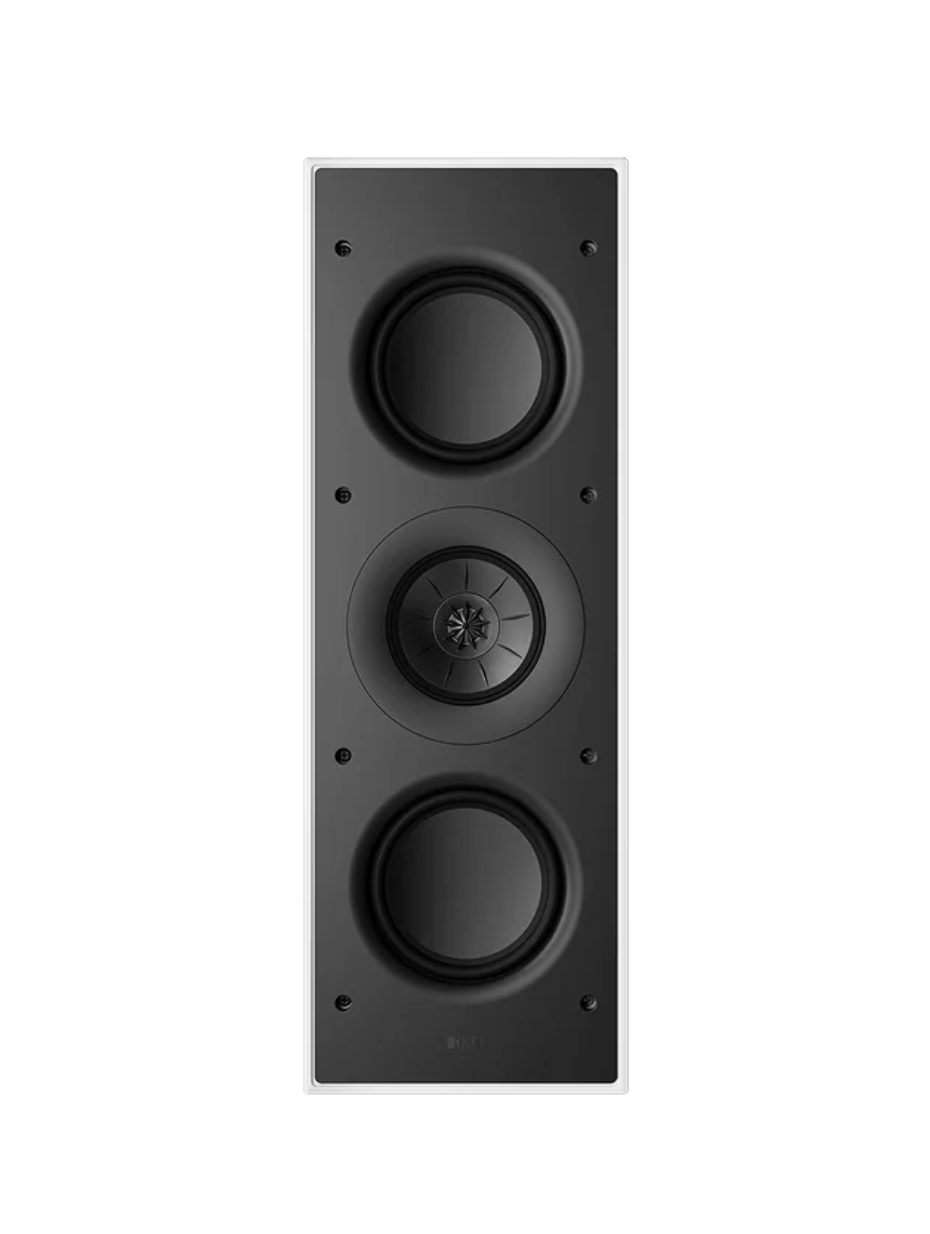

Ci3120QLM-THX
ON DEMONSTRATION
A versatile THX Certified Select In-Wall Speaker with MAT™
The Ci3120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci3120QLM-THX is THX Certified Select. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for medium-sized rooms.
Specification
Specifications
Model
Ci3120QLM-THX
Series
Q Series
Frequency Response Range
50Hz - 20kHz
Frequency Response Remark
(±6dB) open-backed
Frequency Range
42Hz - 20kHz
Sensitivity
89dB
Nominal Impedance
4Ω
Nominal Coverage
150°
Maximum SPL Measured at 1m
105 dB
Drive Units
LF: 2 x 120mm (4.75 in.)
MF: 100mm (4 in.) Uni-Q
HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology1
Crossover Frequency
440Hz, 2.75kHz
Recommended Amplifier Power
25 - 250 W
Recommended High-Pass Filter (Hz)
35Hz-100Hz

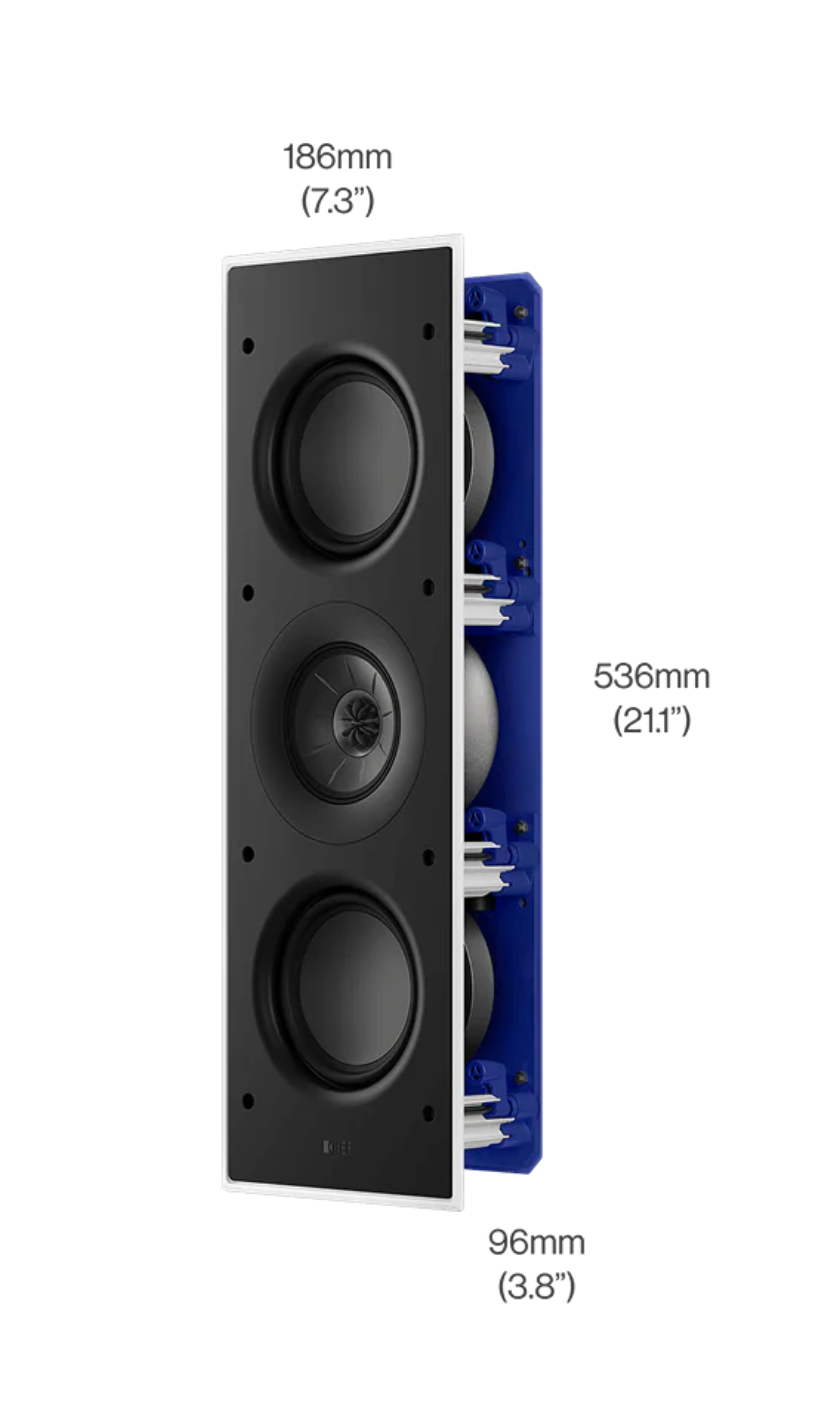

Product External Dimensions (H x W x D)
536 mm x 186 mm x 96 mm (21.1 in. x 7.3 in. x 3.8 in.)
Cut-Out Dimensions (H x W)
513 mm x 163 mm (20.2 in. x 6.4 in.)
Mounting Depth From Surface
90mm (3.6")
