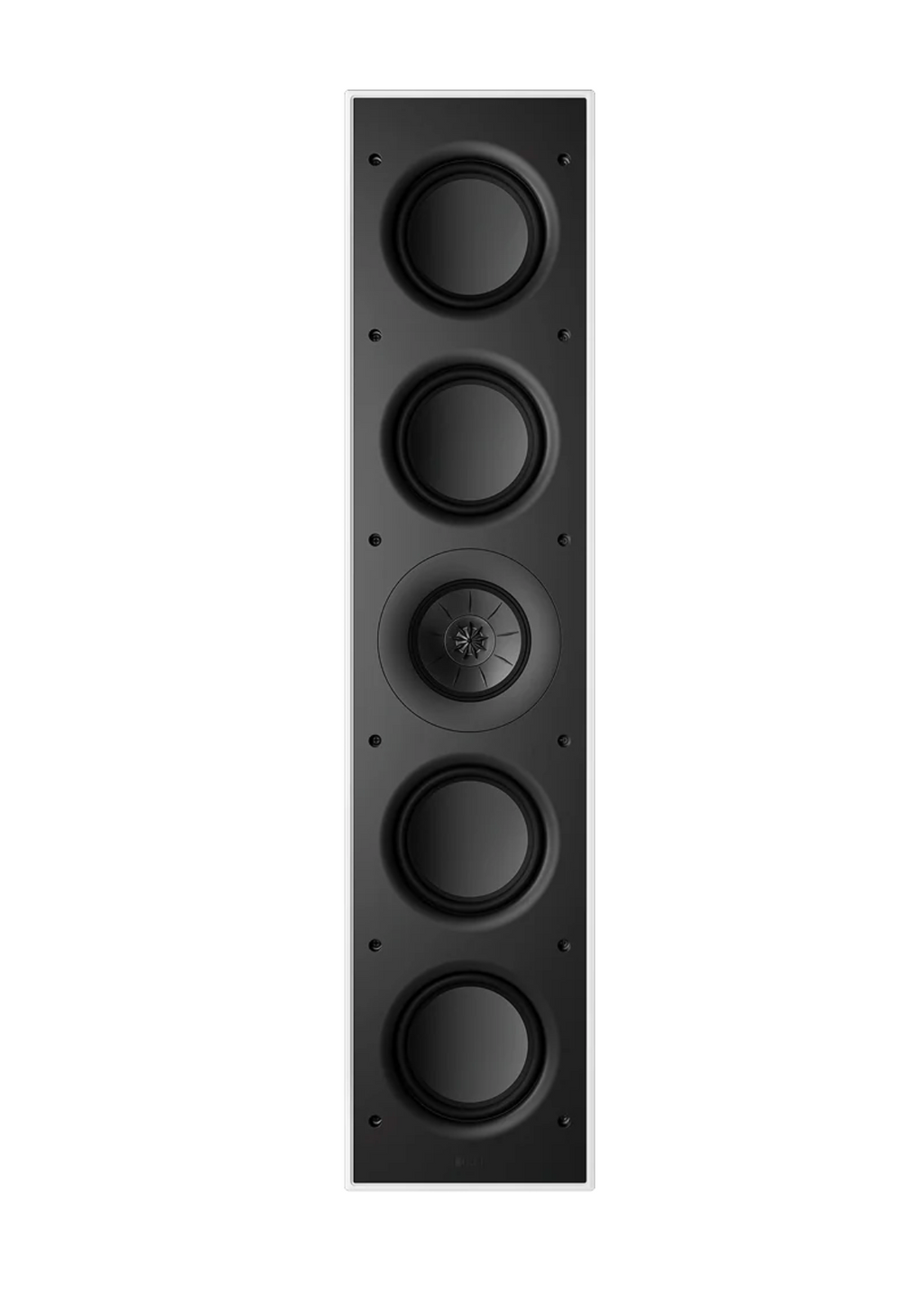

Ci5120QLM-THX
ON DEMONSTRATION
A versatile THX Certified Ultra In-Wall Speaker with MAT™
The Ci5120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci5120QLM-THX is THX Certified Ultra. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for large-sized rooms.
Specification
Model
Ci5120QLM-THX
Series
Q Series
Frequency Response Range
45Hz - 20kHz
Frequency Response Remark
(±6dB) open-backed
Frequency Range
38Hz - 20kHz
Sensitivity
89dB
Nominal Impedance
4Ω
Nominal Coverage
150°
Maximum SPL Measured at 1m
105 dB
Drive Units
LF: 4 x 120mm (4.75 in.)
MF: 100mm (4 in.) Uni-Q
HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology1
Crossover Frequency
440Hz, 2.75kHz
Recommended Amplifier Power
25 - 250 W
Recommended High-Pass Filter (Hz)
35Hz-100Hz

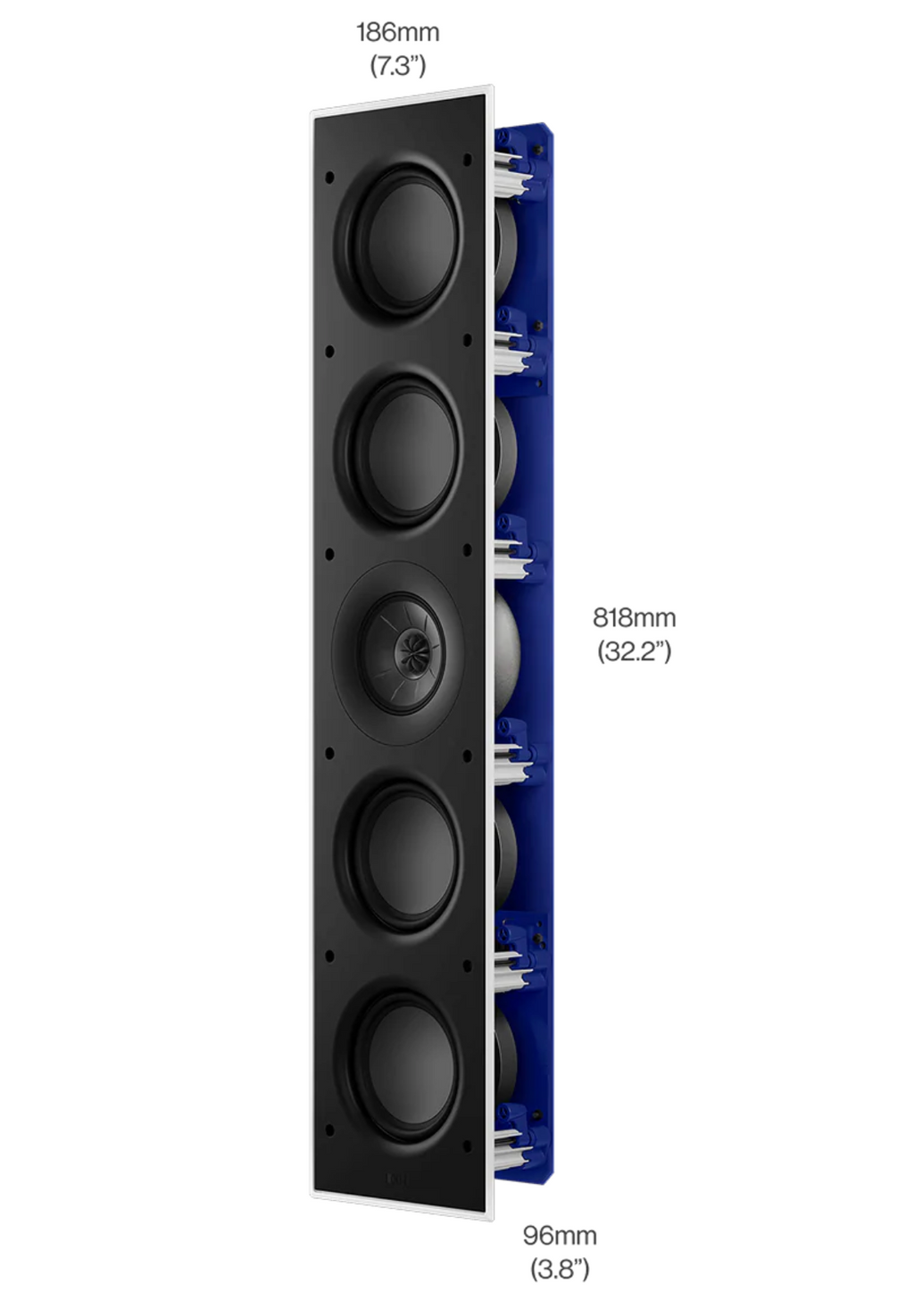

Product External Dimensions (H x W x D)
818 mm x 186 mm x 96 mm (32.2 in. x 7.3 in. x 3.8 in.)
Cut-Out Dimensions (H x W)
795 mm x 163 mm (31.3 in. x 6.4 in.)
Mounting Depth From Surface
90mm (3.6")
Mounting Thickness
Maximun: 36 mm (1.42 in.)
Minimum: 6 mm (0.24 in.)
Ideal Rear Volume (L)
70
Minimum Rear Volume (L)
35
Net Weight
9.7KG (21.4 lbs.)
Gross Weight
Single box 12.8KG (28.2 lbs.)
Master box 27KG (59.5 lbs.)
Safety And Regulatory Compliance
IP64
THX Certification
THX® Certified Ultra
