Emotiva XPA-11 Gen3 Power Amplifier (11 Channel)
Emotiva Emotiva XPA-11 Gen3 Power Amplifier (11 Channel)
Brand: Emotiva
Type: Power Amplifiers

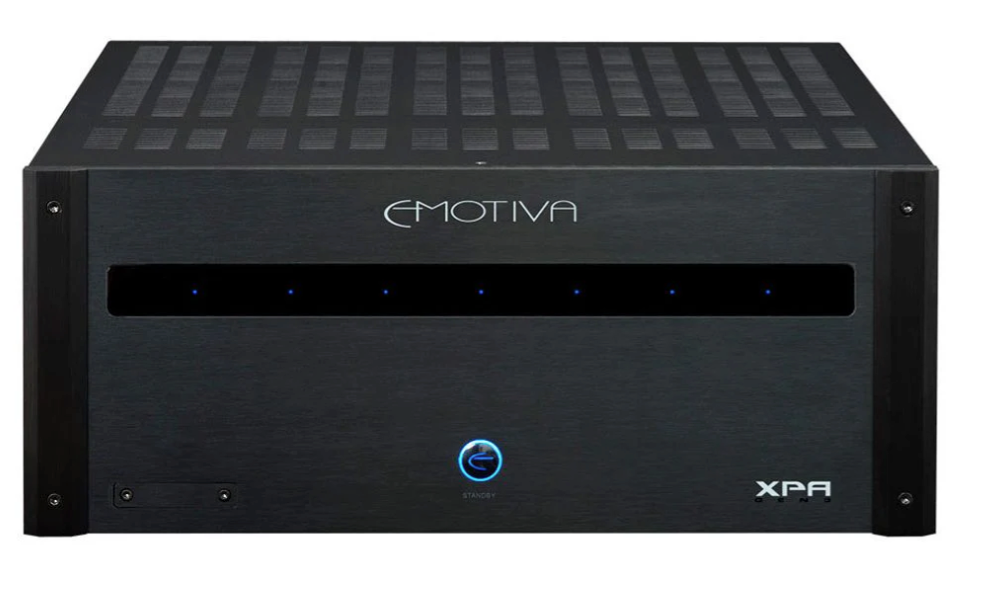

Emotiva XPA-11 Gen3 is an eleven-channel audiophile power amplifier that delivers exceptionally accurate and dynamic renditions of all types of music.
The XPA-11 Gen3 offers the rare combination of excellent technical performance and superb sound quality, which makes it the perfect solution for listening to your favourite multi-channel music or for listening to movie soundtracks in a high-end home theatre system.
Modular Construction
The XPA Gen3 modular power amplifier is comprised of a heavy-duty chassis, which houses the oversized power supply, and up to seven amplifier modules. The XPA Gen3 can be purchased with anywhere between two and seven amplifier modules installed, and additional amplifier modules may be installed as more channels of amplification are needed (up to a maximum of seven modules).

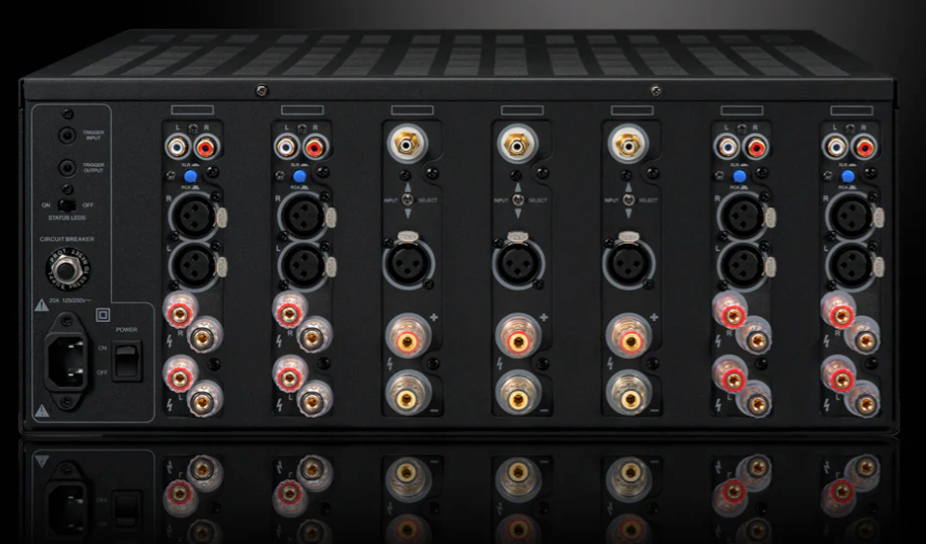

The front panel display and protection system are designed to work with the maximum number of channels, and so need not be updated when the XPA Gen3 is expanded; on the rear panel, slots not occupied by amplifier modules will be covered with protective cover panels. All seven module slots in the XPA-11 Gen3 are already populated.
Specification
| ALL MODELS: Power Output Per Channel | 300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms 550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms 800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms |
|---|---|
| ALL MODELS: FTC Rated Power 2 Channels Driven; 20 Hz - 20 kHz; THD <0.1% |
300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line) 490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line) |
| XPA Gen3 Power Per Channel: All Channels Driven THD <0.1% ; into 8 Ohms |
Two : 300 watts RMS per channel Three : 275 watts RMS per channel Four : 260 watts RMS per channel Five : 250 watts RMS per channel Six : 225 watts RMS per channel Seven : 200 watts RMS per channel |
| Power Bandwidth (at rated power; 8 Ohm load) | 20 Hz to 20 kHz (+ / - 0.1 dB) |
| Broad Band Frequency Response | 5 Hz to 80 kHz (+ 0 / - 0.15 dB) |
| THD + noise | < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms |
| Signal to Noise Ratio (8 Ohm load) | > 117 dB; ref FTC rated power; unbalanced input (A-weighted) > 91 dB; ref 1 watt; unbalanced input (A-weighted) |
| Minimum Recommended Load Impedance | 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads |
| Damping Factor (8 Ohm load) | > 500 |
| Speaker Output Connections | Audiophile grade, gold plated, 5-way binding posts |
| Power Supply | High efficiency, audiophile grade, Switch Mode Power Supply (SMPS) |
| Input Sensitivity (for rated power; 8 Ohm load) | 1.5 V |
| Gain | 29 dB |
| Power Requirements | Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected) |
| Protection | The XPA Gen3 is protected against excessive operating temperature shorted speaker connections, ground faults, and other common fault conditions |
