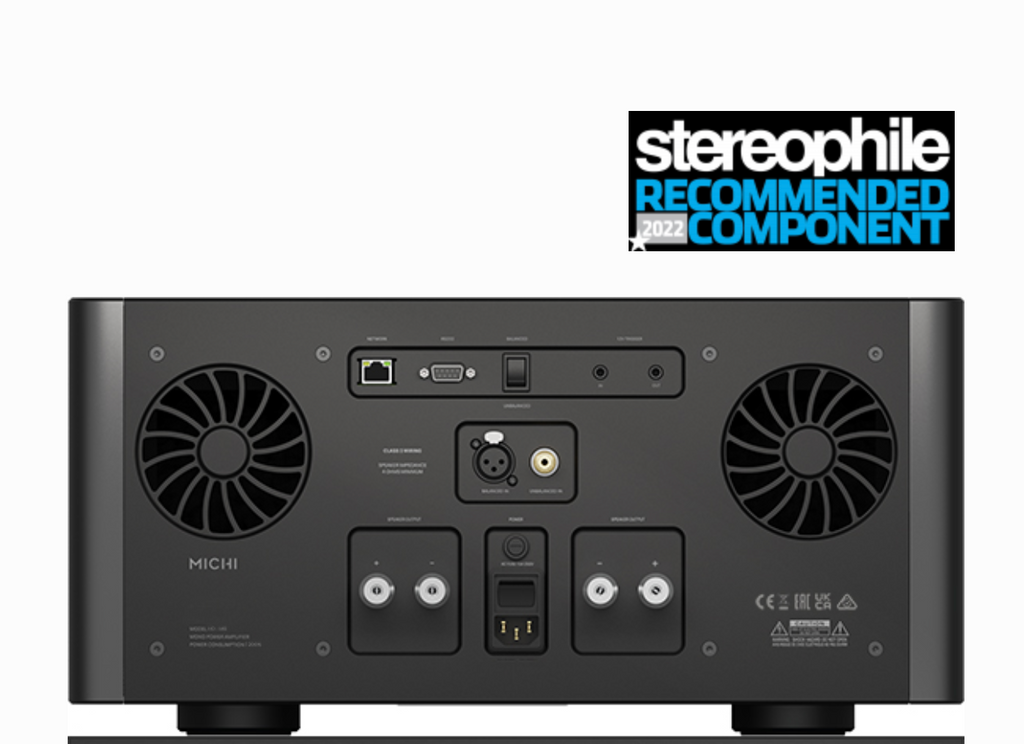

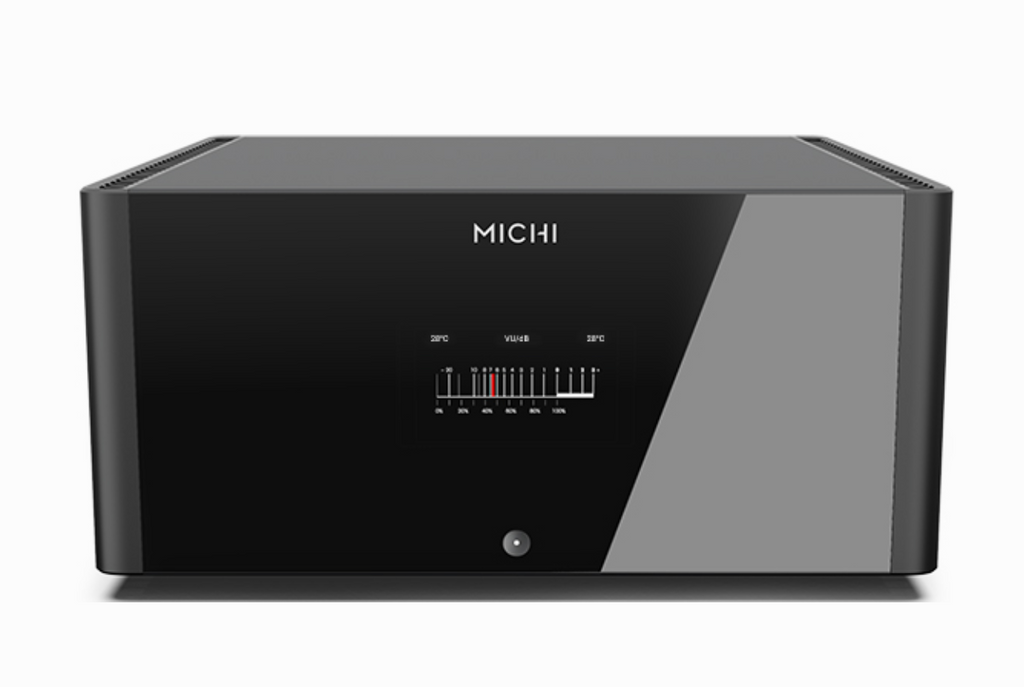

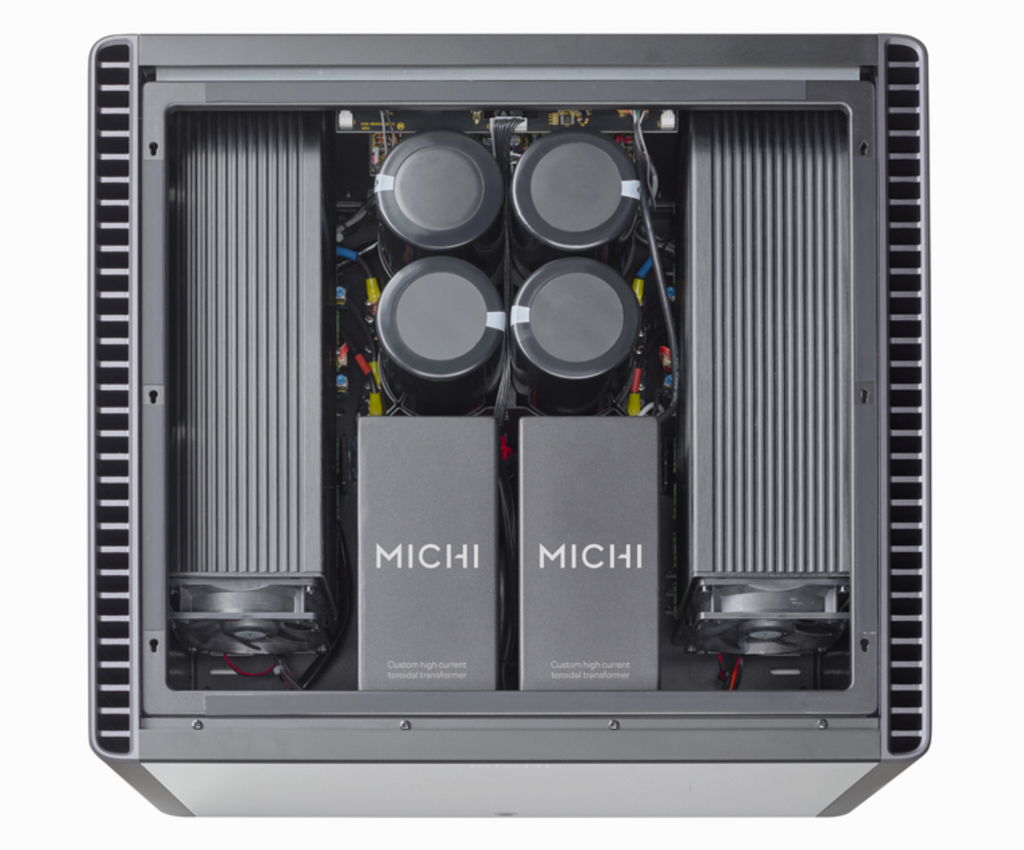

M8 Power Amplifier
ON DEMONSTRATION
The Michi M8 Monoblock Amplifier no-compromise Class AB amplifier delivers 1,080 watts into 8 ohms and an astounding 1,800 watts into 4 ohm loads. The design architecture ensures a smooth, accurate and relaxed delivery of the audio to even the most demanding loudspeakers while maintaining critical energy, rhythm and timing.
Specification
DIMENSIONS (W × H × D)
485 × 238 × 465mm
19" × 9.375" × 18.25"
CONTINUOUS POWER OUTPUT
1080W/Ch (8Ω)
1800W/Ch (4Ω)
TOTAL HARMONIC DISTORTION (THD)
<0.018%
FREQUENCY RESPONSE
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.5dB)
S/N RATIO(IHF "A" Weighted)
120dB
GAIN
Unbalanced (RCA): 34dB
Balanced (XLR): 30dB
FRONT PANEL HEIGHT
220mm (8.625")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
1200W
STANDBY POWER CONSUMPTION
Normal: <0.5W
Network Wakeup: <2W
NET WEIGHT
59.1kg (130.3lbs.)
BTU RATING (4Ω, 1/8th power)
3200 BTU/h
