Trinnov Audio NOVA Studio / Room Optimiser

On Demonstration and In Stock.

Includes Extra 2 Channel Licence, making 4 channels in total.

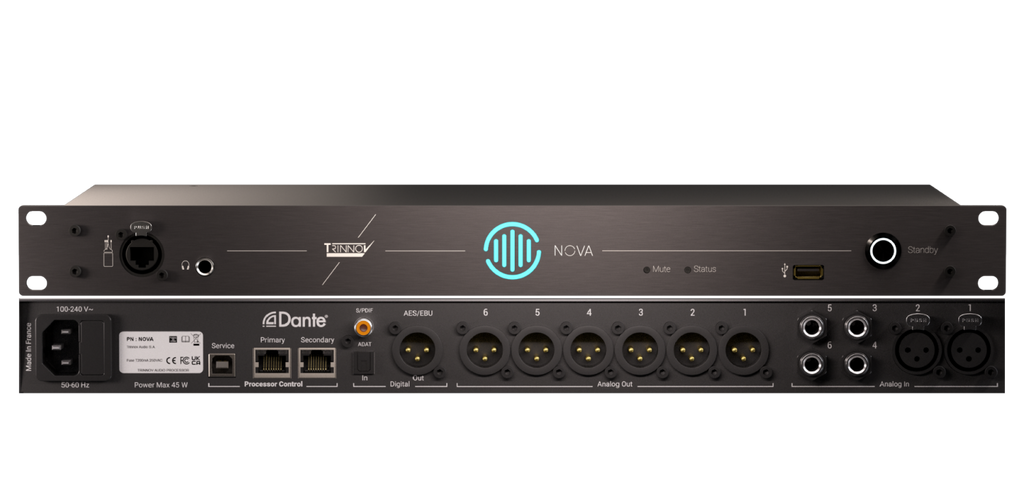

Trinnov NOVA is a Room Optimiser, Monitor Controller and Audio Interface all in one. It is the new backbone of your entire monitoring system.

From renowned sound engineers to loudspeaker manufacturers, Loudspeaker and Room Optimization is being fast adopted by both music lovers at home and in the music industry. This area of acoustic research has been Trinnov Audio's main focus and expertise since 2005. Trinnov Audio are recognized as the leader in this field.

NOVA gives you access to Trinnoiv Audio's cutting-edge Trinnov Optimizer technology. Change the way you work and never look back. Stop second-guessing and start focusing on music.

NOVA is very modular, allowing you to upgrade from 2 to 6 channels through a simple software update.

Whether you add a subwoofer, a second pair of monitors or upgrade to 5.1, all you need to do is purchase additional licenses from Cinehome, your local Trinnov Audio dealer and unlock your NOVA in just a few clicks.

We offer full expert set up support and advice with all Trinnov Audio products.

Specification

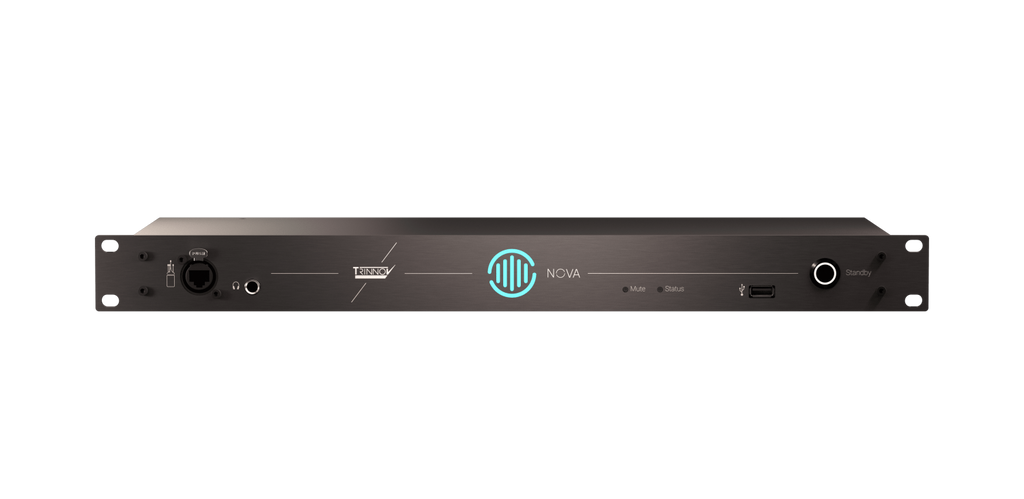

FRONT PANEL

• Microphone Input: 1x Calibration Microphone Ethercon Input
• Headphone Output: • 1x Jack 6.35 stereo Headphone Output
• La Remote connectivity: 1x USB Type A port for La Remote
• Standby / Mute button: Yes
• Status: LED Status

AUDIO & PROCESSING

• ADC Resolution / Sampling Rate: 24 Bits/192 kHz
• DAC Resolution / Sampling Rate: 24 Bits/192 kHz
• A/D Dynamic Range (AES17): 115 dB (A-Weighted, ref. +18dBu)
• D/A Dynamic Range (AES17): 115 dB (A-Weighted, ref. +18dBu)
• D/A THD+N ratio: > 110dB, 1kHz@0dBFS (20kHz BW)
• Processing Sampling Rate: Native up to 96kHz (192kHz coming soon)
• Processing Resolution: 64 bits floating point
• Processing channels: 2 Optimizer licenses included (upgradable)
• Zero latency bypass: coming soon
• Crossovers / multiway: coming soon

DIGITAL AUDIO CONNECTIVITY

• ADAT/SPDIF Input: 1x ADAT or SPDIF optical input
• SPDIF Input: 1x SPDIF coaxial input
• Ethernet port: 2x Ethernet ports (Dante 16 in/16 out)
• XLR Output: 1x AES3 XLR stereo output

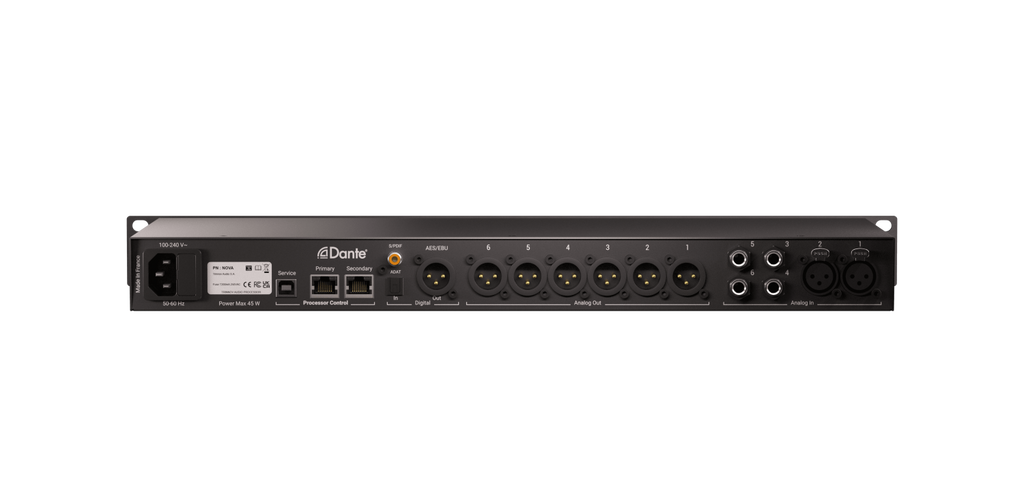

ANALOGUE AUDIO CONNECTIVITY

• Balanced Input: 4x Jack 6.35 Balanced Inputs
• Balanced Input: 2x XLR Balanced Inputs
• Balanced Output: 6x XLR Balanced Outputs

POWER SUPPLY

• Power requirement: 100V-240V AC 50Hz/60Hz
• Power consumption: 15W
• Mains fuse: T500mA slow blow
• Transformer: Integrated (no external transformer, standard IEC socket)

NETWORK

• Network connectivity: IPV4 dual connector (configurable)
• IP Configuration modes: DHCP / Auto-IP link local / fixed IP
• Compatibility: Eucon compatibility via the “Trinnov App”

WEIGHT & DIMENSIONS

• Dimensions (L x l x P) mm: 482 x 44 x 192
• Dimensions (L x l x P) inches: 19” x 1.7” x 7.5”
• Shipping box dimensions (W x H x D) cm: 59 x 7 x 30
• Weight: 2.5 kg / 5.5 lbs
• Shipping weight / volume: 3.7 kg / 0.012 m3
• Rack Mounting: 1U - Fixed Rack Ears

OPTIONS

• Processing channels upgrade: 2-channel software bundle (up to 6 total)
• 3D Measurement Microphone: Ethercon connector
• USB Hardware Remote Controller: La Remote

WARRANTY

• Standard Warranty: 2 years
• Transferable: Yes

CURRENT DEVELOPMENT

• Hardware Bypass: Coming 2024
• 192 kHz processing: Coming 2024
• Variable latency: Coming 2024
• Active crossovers:

Downloads

• Trinnov Audio Nova User Manual Compressed Pdf Google Drive (PDF)
