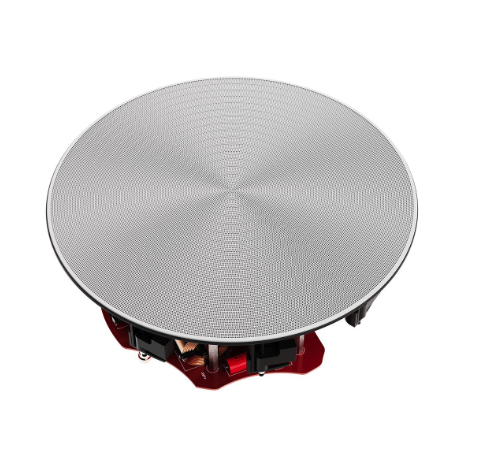

Perlisten Audio R2ic in-ceiling speaker (single)
Perlisten Audio Perlisten Audio R2ic in-ceiling speaker (single)
Brand: Perlisten Audio
Type: In Ceiling Loudspeakers
Perlisten Audio R2ic

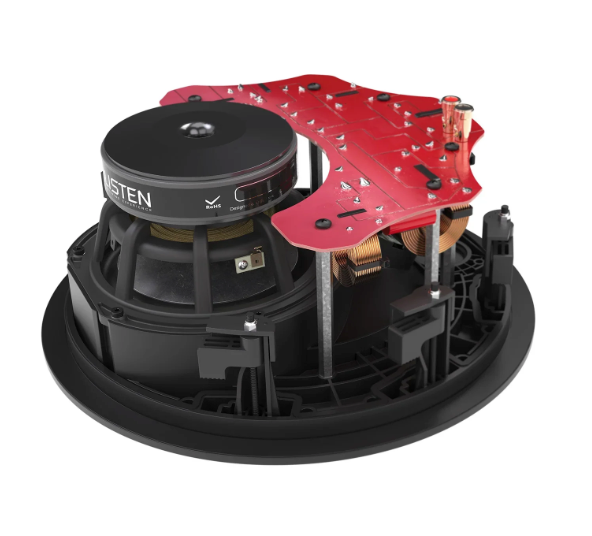

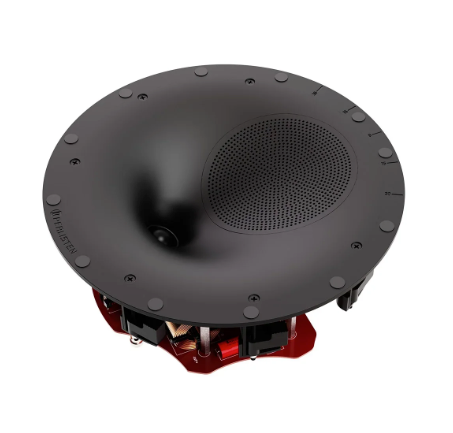

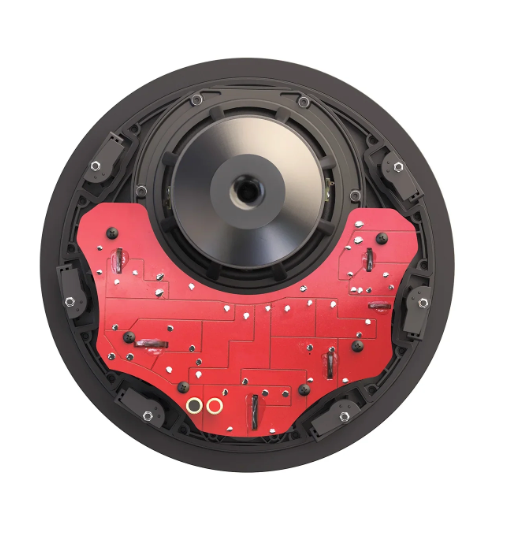

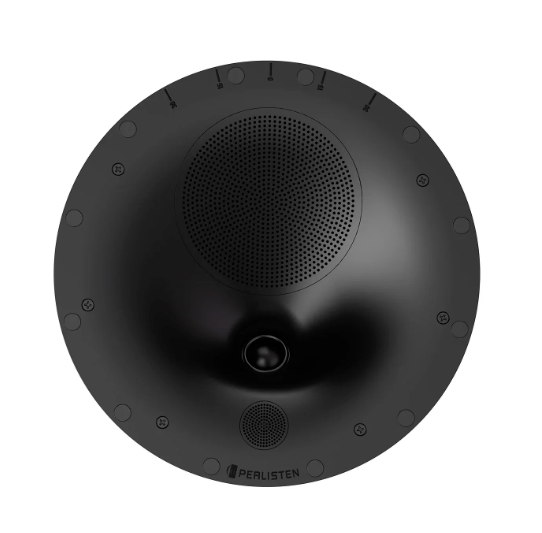

A great solution for high end Dolby Atmos, DTS:X, and Auro-3D applications. The R2ic is a simplified 2-way version of the R3ic, featuring an innovative new waveguide array controlling Mid/High frequencies, centered by a 28mm silk dome tweeter. Optimized for in-ceiling applications where a 30 degree reference axis is desired as well as larger listening window in the direction towards the listening space. Extremely versatile – Can be used as L,C,R, surround, height, or wide channel speaker. All transducers were developed ground up by Cosmos acoustical modeling, the result is one of the most technologically advanced in-ceiling loudspeakers available. This new tweeter/wave-guide DPC-Array delivers amazing accuracy , smoothness, and directivity control to handle the critical vocal range and delicate treble. The R2ic also benefits from unique and proprietary timbre matching technique across the entire R-Series.
Specification
| Enclosure Alignment | 2-way infinite baffle, optional rear enclosure |
| Driver compliment | DPC Array: 28mm silk dome tweeter Woofers: 165mm Alum frame, HPF pulp |
| Sensitivity | 86.0dB / 2.83v / 1.0m |
| Impedance | 6Ω nominal / Ω min |
| Listenting Window (from 30deg Ref) | Horizontal: +/-30 deg Vertical: +/-30 deg |
| Response Linearity | 100 - 10kHz +/-1.5dB window |
| Frequency Response | 44 - 27kHz (-6dB) 31 - 32kHz (-10dB) |
| Typical In Room bass extension | 32Hz (-6dB) 22Hz (-10dB) |
| Overall Dimensions (with grille) | 343.3 diam x 153.1mm depth 13.5" diam x 6.0" depth |
| Recommended cutout | 305mm diameter 12" diameter |
| Weight | 11.8lbs. (5.4kg) |
| Recommended Amplifier Power | 50 - 150W (with 80Hz HPF) 50 - 100W (full range) |
| SPL capability @1m (100-20kHz) | 109.5dB peak 109.0dB peak <3% 2nd, 3rd Harmonics |
| Certification | THX Ultra |
