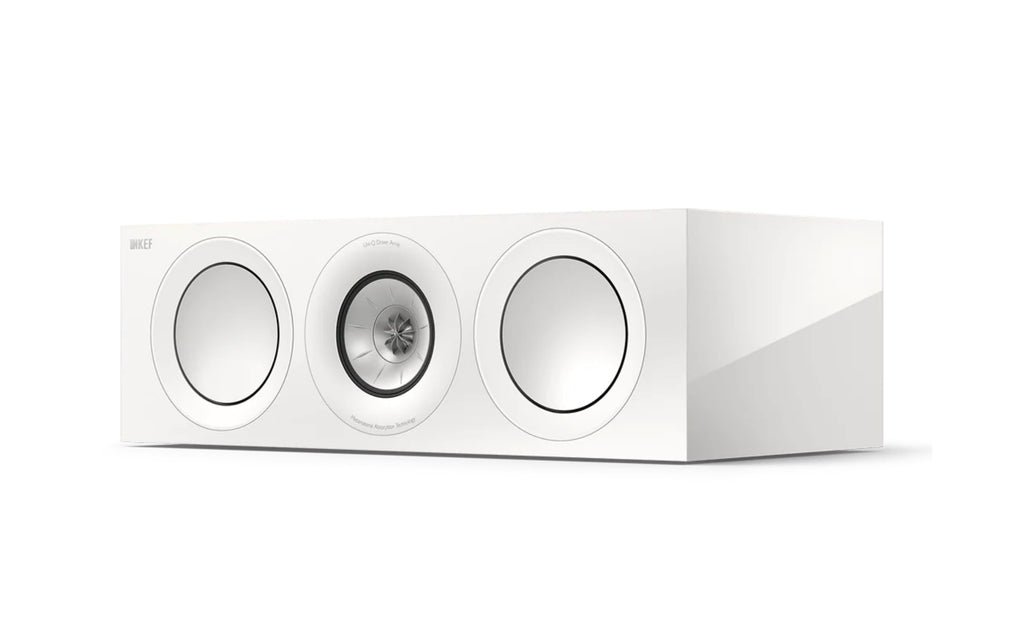

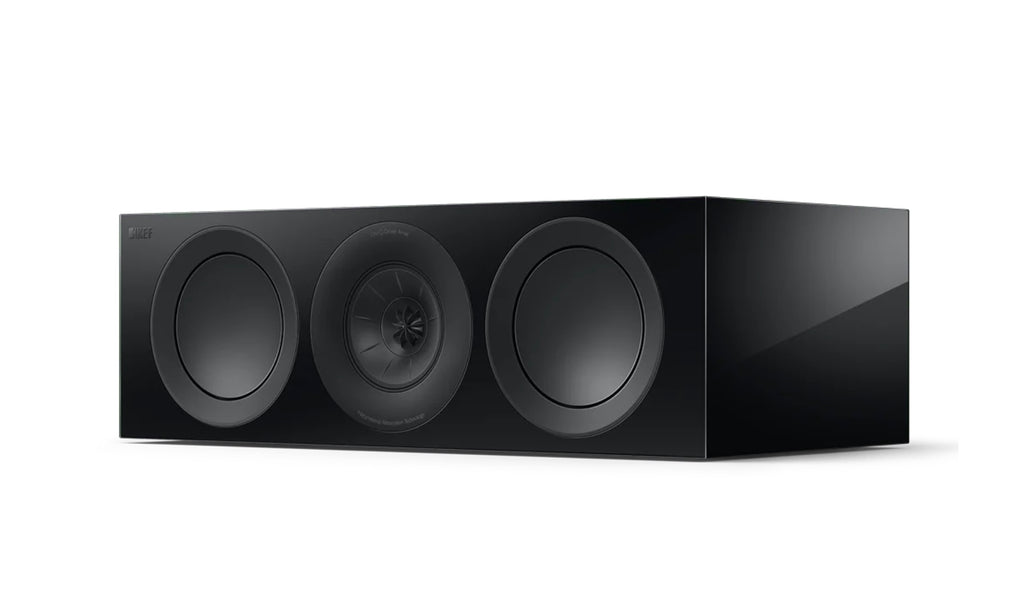

R6 Meta Centre Channel Loudspeaker
ON DEMONSTRATION
Flagship three-way centre channel speaker
Featuring the same 12th generation Uni-Q® driver array with MAT™ as the R Series stereo models for perfect tonal matching, and two powerful 6.5’’ hybrid aluminium bass drivers, the R6 Meta delivers an immersive listening experience that brings movies vividly to life. It is highly versatile and can be used in an LCR (Left-Centre-Right) configuration.
Specification
DESIGN
Three-way closed box
DRIVE UNITS
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone
CROSSOVER FREQUENCY
500 Hz, 2.4 kHz
FREQUENCY RANGE (-6dB)
55 Hz - 50 kHz
TYPICAL IN-ROOM BASS RESPONSE (-6dB)
40 Hz
FREQUENCY RESPONSE (±3dB)
65 Hz - 28 kHz
HARMONIC DISTORTION (90dB, 1m)
<1% 65 Hz and above
<0.5% 93 Hz - 20 kHz
MAXIMUM OUTPUT
111 dB
AMPLIFIER REQUIREMENTS
15 - 250 W
NOMINAL IMPEDANCE
4 Ω (min. 3.2 Ω)
SENSITIVITY (2.83V/1m)
88 dB
WEIGHT *
17.8 kg (39.2 lbs)
DIMENSION (H x W x D) WITH TERMINAL *
200 x 625 x 339 mm (7.9 x 24.6 x 13.3 in.)
FINISHES
Black Gloss / White Gloss / Walnut
