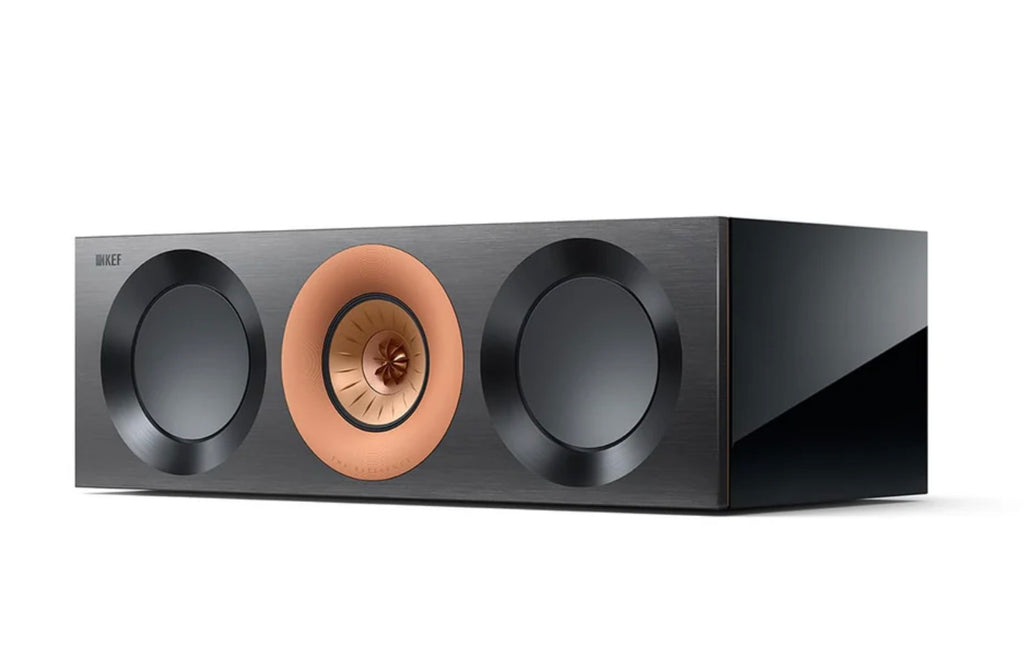

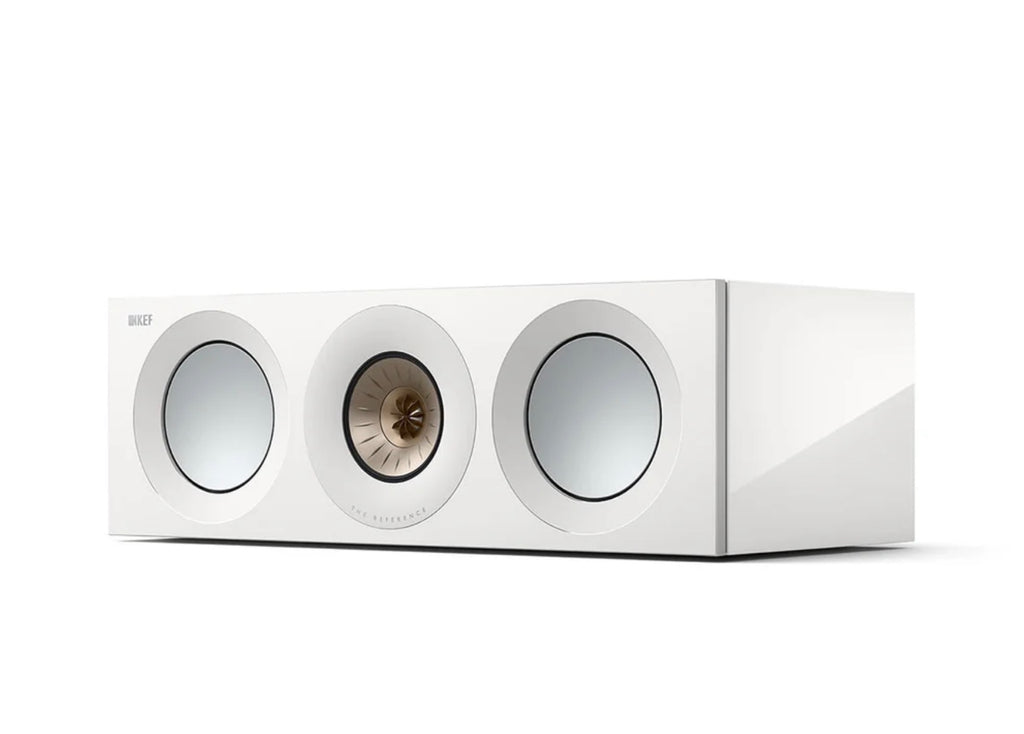

Reference 2 Meta Centre Channel Loudspeaker
ON DEMONSTRATION
The benchmark of benchmarks
Since 1973, The Reference has continually set the benchmark for loudspeakers and sound reproduction. Pioneering the use of digital technologies to achieve the highest audio accuracy, every pair can be matched within 0.5dB to the laboratory-maintained reference standard.
Specification
Design
Design
Three-way closed box
Drive units
Uni-Q driver array:
HF: 25 mm (1 in.) aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass units:
LF: 2 x 165 mm (6.5 in.) aluminium cone
Frequency range free field (-6dB)
65Hz - 45kHz
Frequency range typical in room bass response (-6dB)
46Hz
Frequency response (±3dB)
80Hz – 35kHz
Crossover frequency
450 Hz, 2.1 kHz
Amplifier requirements
50 - 300W
Sensitivity (2.83V/1m)
86dB
Harmonic distortion 2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 2kHz
<0.1% 2kHz - 20kHz
Maximum output (peak sound pressure level at 1m with pink noise)
113.5dB
Impedance
4 Ω (min. 3.2 Ω)
Weight
22.8 kg (50.3 lbs.)
Dimensions (H x W x D)(with grille and terminal)
205 x 630 x 335 mm(8.1 x 24.8 x 13.2 in.)
